MS KART Blue Phoenix KZ

The Blue Phoenix KZ combines a 30 mm 25CrMo4 frame with the braking and setup requirements of shifter-kart use. The 1050 mm platform includes a 50 mm rear axle, Sniper camber/caster adjustment and a wide range of optional chassis tuning parts.

Key specifications

• Frame: 25CrMo4, Ø 30 mm
• Wheelbase: 1050 mm
• Rear axle: Ø 50 mm x 1040 mm
• CIK/FIA homologation: 008-CH-02
• Configuration: KZ

Standard equipment

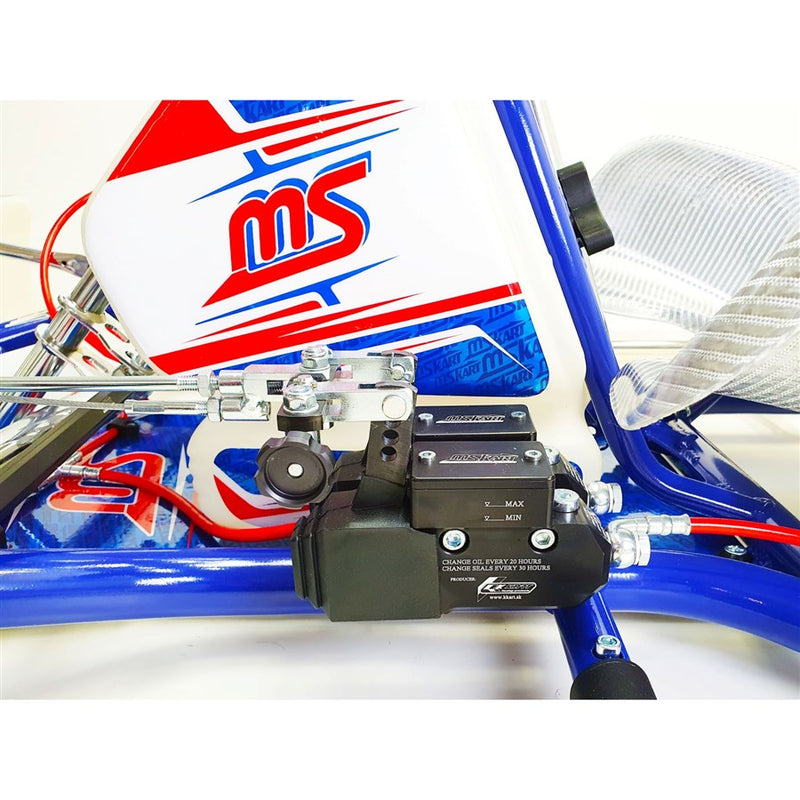

• K KART hydraulic self-adjusting brake system
• Self-ventilated brake disc
• KG 507/508 CIK bodywork and KG C3 rear spoiler
• Sniper camber/caster adjusters
• Adjustable front and rear ride height
• Aluminium wheel rims

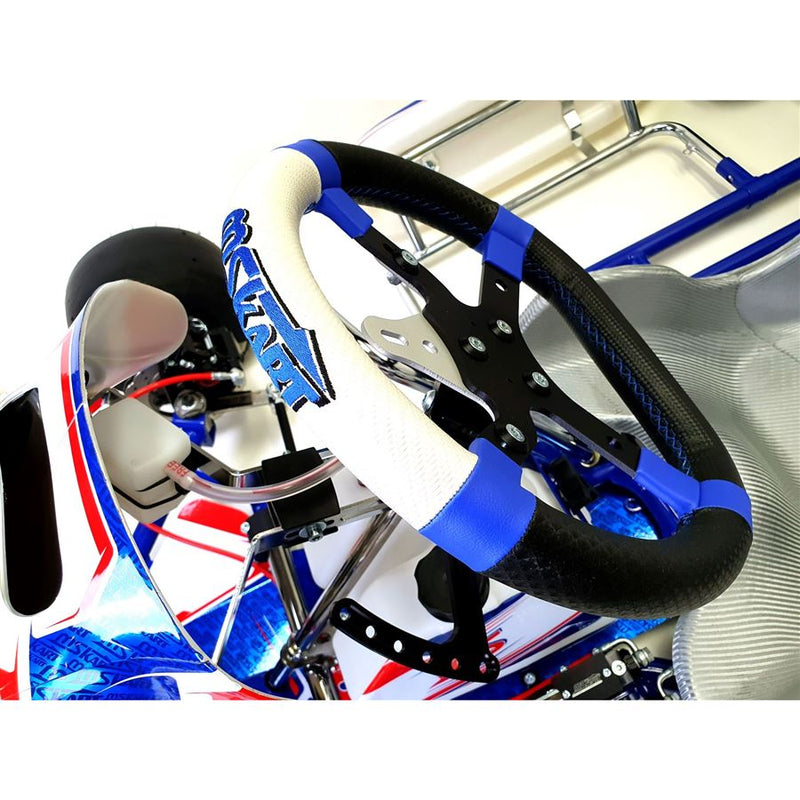

• MS KART leather steering wheel
• Laminate seat
• Aluminium floor tray
• Front/rear brake pressure adjustment

Optional equipment

• Front and rear torsion bars
• KG RS3 adjustable-width rear spoiler
• MS KART bodywork sticker set
• Cooling system components
• Magnesium wheel rims
• Aluminium footrest and pedals
• JECKO seat
• Carbon-Kevlar floor tray
• Carbon-Kevlar or combined laminate/Carbon-Kevlar seat
• Pedal extension kit

Good to know: Designed for KZ/shifter-kart applications; complete the build with the engine, seat and gearing required for your class.
